Products

XRF gold testing machines

Non-destructive purity analysis for branches and assaying centres.

Request Product Information
Choose Your Analyzer

Neo ALFA XRF Series

Compare detector technology, element range, accuracy and physical specifications.

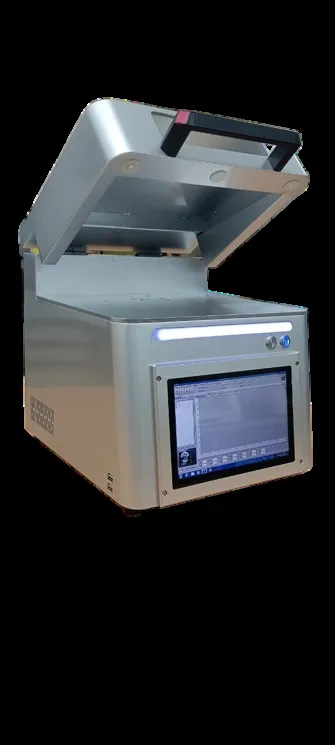

Neo ALFA PC XRF testing machine
Gold Testing Machine

Neo ALFA PC

Detector
High-resolution proportional counter detector
Element range
Gold, silver, copper, nickel, zinc and platinum
Accuracy
±0.3%
Weight
22 kg
Dimensions
460 × 380 × 460 mm
System
Windows-based Intel Core i5 system
Enquire about this model →

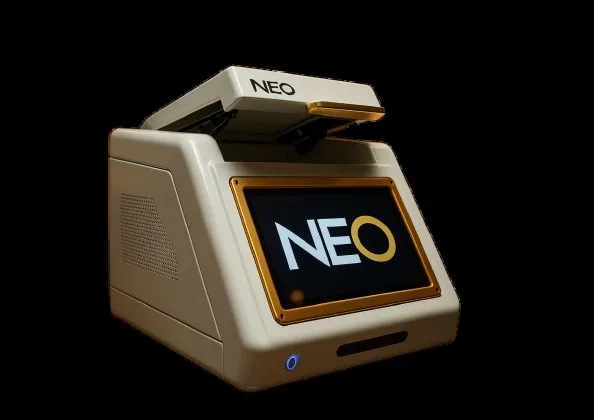

Neo ALFA PC+ XRF testing machine
Gold Testing Machine

Neo ALFA PC+

Detector
HD+ gas-filled proportional counter detector
Element range
Gold, silver, copper, nickel, zinc and platinum
Accuracy
±0.3%
Weight
22 kg
Dimensions
460 × 380 × 460 mm
System
Windows 10 Pro with built-in scale and appraiser rate calculation
Enquire about this model →

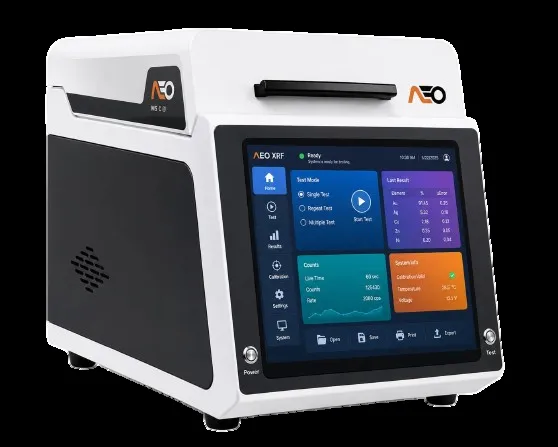

Neo ALFA Dzire XRF testing machine
Gold Testing Machine

Neo ALFA Dzire

Detector
AMPTEK (USA) silicon PIN diode detector
Element range
10+ elements including Au, Cu, Ag, Zn, Cd, Pt, Pd, In, Pb and Ni
Accuracy
±0.15%
Weight
28 kg
Dimensions
325 × 350 × 450 mm
System
Windows 10 Pro, Intel Core i5 and 8 GB memory
Enquire about this model →

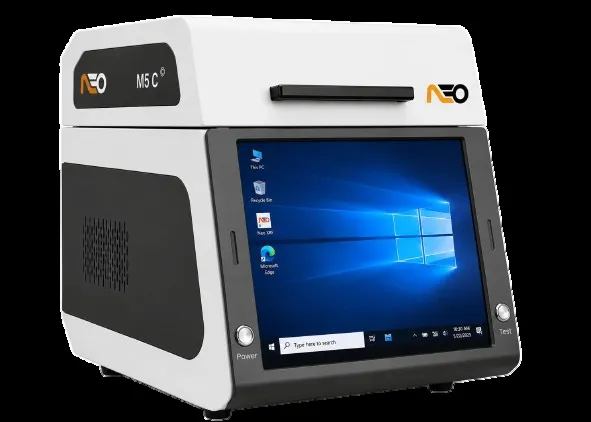

Neo ALFA Dzire+ XRF testing machine
Gold Testing Machine

Neo ALFA Dzire+

Detector
AMPTEK (USA) silicon PIN diode detector
Element range
20+ elements including precious, base and transition metals
Accuracy
±0.15%
Weight
28 kg
Dimensions
325 × 350 × 450 mm
System
Windows 10 Pro, Intel Core i5 and 8 GB memory
Enquire about this model →

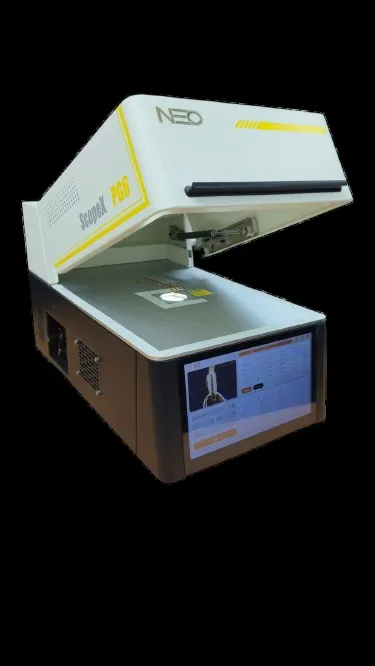

Neo ALFA ScopeX SI-PIN XRF testing machine
Gold Testing Machine

Neo ALFA ScopeX SI-PIN

Detector
AMPTEK (USA) silicon PIN diode detector
Element range
Al (13) to U (92); up to 30+ activated elements
Accuracy
±0.15%
Weight
30 kg
Dimensions
325 × 350 × 450 mm
System
Windows 10 Pro, Intel Core i5 and 8 GB memory
Enquire about this model →

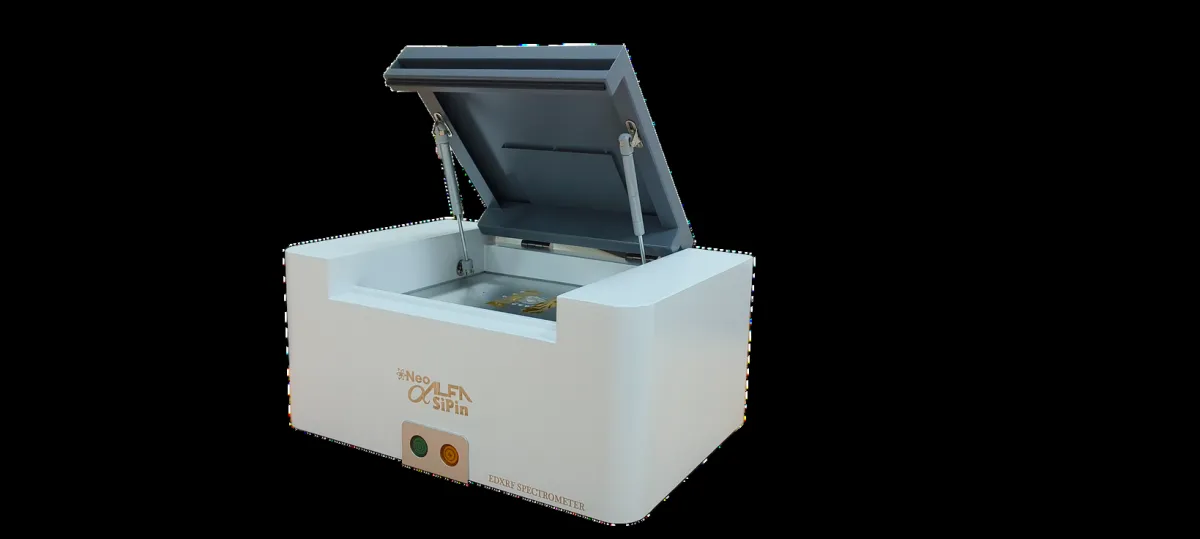

Neo ALFA Assay SI-PIN XRF testing machine
Gold Testing Machine

Neo ALFA Assay SI-PIN

Detector
AMPTEK (USA) silicon PIN diode detector
Element range
Al (13) to U (92); up to 30+ activated elements
Accuracy
±0.15%
Weight
30 kg
Dimensions
325 × 350 × 450 mm
System
Windows 10 Pro, Intel Core i5 and 8 GB memory
Enquire about this model →

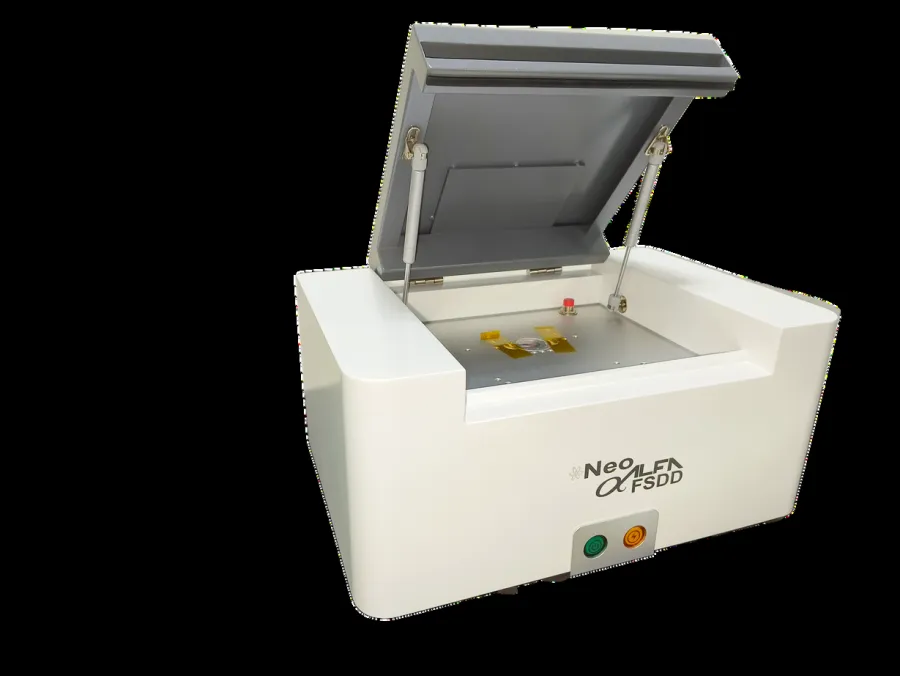

Neo ALFA SDD & FSDD XRF testing machine
Gold Testing Machine

Neo ALFA SDD & FSDD

Detector
AMPTEK (USA) silicon drift or fast silicon drift detector
Element range
Al (13) to U (92); up to 40+ activated elements
Accuracy
±0.15%
Weight
30 kg
Dimensions
325 × 350 × 450 mm
System
Gold and silver testing with advanced SDD/FSDD detection
Enquire about this model →
Standard Capabilities

Built for Fast, Non-Destructive Analysis

Core specifications shared across the Neo ALFA range. Exact configuration varies by model.

X-ray excitation
50 W (kV and 1 mA) micro-focused anode tube
Focal depth
Fixed focal depth with laser alignment and autofocus
Digital processing
4096-channel digital multi-channel analyser with flexible shaping time
Signal correction
Automatic dead-time and escape-peak correction
Analysis reports
Export to Excel, PDF, JPG and PNG
Layer analysis
Up to 5 layers (4 layers plus base) and 3 elements per layer
Camera
High-resolution CCD or 1280 × 720 CMOS optics, depending on model
Power supply
150 W, 100–240 V, 50–60 Hz
Operating environment
15°C to 30°C (50°F to 104°F)

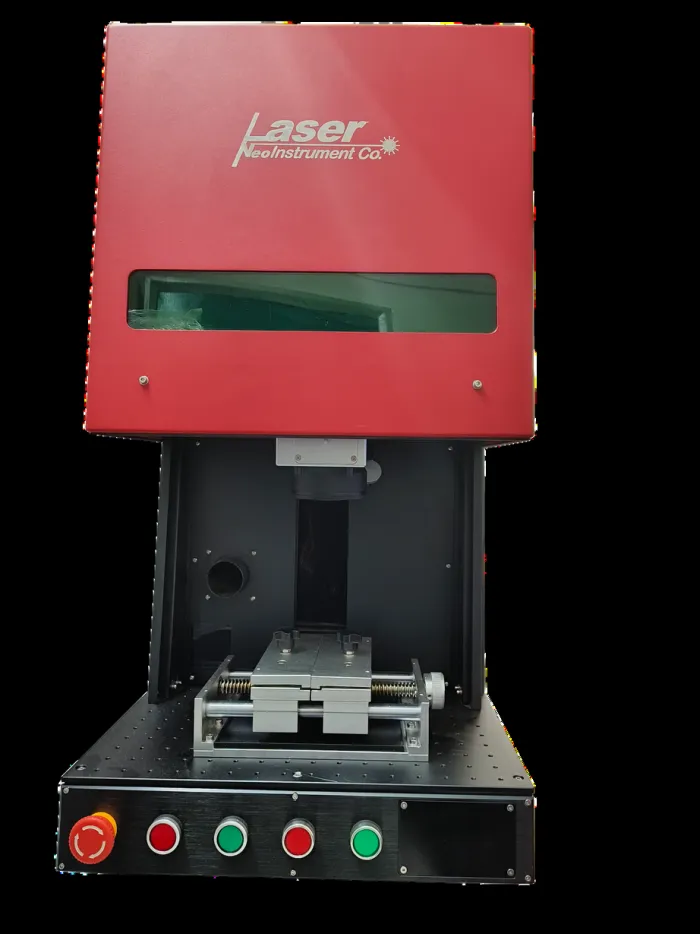

Neo Eco Laser marking and engraving machine
Eco Laser Series

Laser Marking, Engraving & Cutting Machines

Available in Ni20, Ni30, Ni50, Ni60 and Ni100 configurations for jewellery, industrial parts and precision marking applications.

20–100 WLaser output range
1064 nmLaser wavelength
Up to 7000 mm/sMarking speed
0.01 mmMinimum line width
70–150 mmAvailable marking areas
Air cooledUSB control interface

Applications: jewellery and hallmarking, hardware tools, electronics, automotive parts, medical equipment, watches, spectacles, coated materials, plastics, rubber, ceramics and metal industries.

Discuss Your Application
